Main parameters:
- height of the towing eye from the road 370 mm
- height of the tandem trailer from the road 830 mm (without swap bodies)
- total length of the tandem trailer 9 691 mm (without swap bodies)
- total width of the tandem traile 2 369 mm (without swap bodies)
- total load 18 000 kg
- curb weight 2 950 kg
- payload 15 050 kg

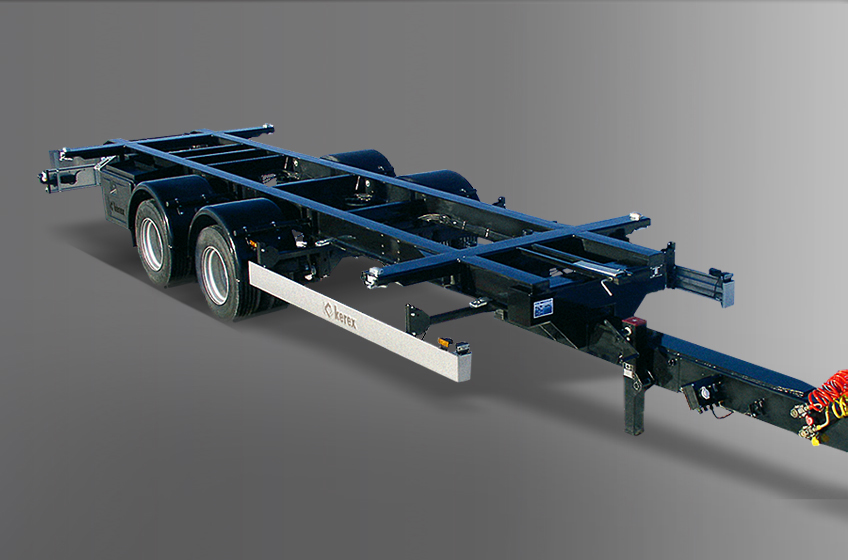

Universal tandem trailer PT 01-18 is designed for removable and rigid bodies - canvas, steel and plastic.
Basic version:
- BPW axles
- drum brakes with twin wheels
- brake system KNORR-BREMSE and ABS + EBS configuration 4S/2M
- air suspension
- adjustable height to the loading bay
- automatic adjustment of ride height after starting
- 245/70 R 17,5 tired
- supporting legs HAACON 2 pcs
- retractable supporting leg HAACON
- connecting equipment and aluminium rear bumber with an integrated 9-chamber lighting
- side LED lighting
- holder with spare tire
- toolbox
Interior equipment and additional equipment
By the request of the customer
Surface treatment
- sandblasting to SA 2.5
- chemical degreasing and chemical pre-treatment against corrosion in immersion tube
- cathodic dip coating in light shade from the outside and the inside
- powder coating in RAL from the outside and the inside by the request of the customer
